South Bend

The Southbend Parts you Need are Here

Restaurant managers know that few things are more disruptive to their business than a breakdown in their cooking equipment. That’s why when businesses that use utilities from Southbend and other manufacturers need to replace pilot burners, temperature probes, and other parts they turn to us.

Since 1995, Parts Depot has been there to provide restaurants with the restaurant parts they need to prevent minor breakdowns from slowing them down and hurting their sales. With over a dozen manufacturers supported, we are able to offer our customers a diverse range of parts certain to meet their needs. We carry OEM parts as well as aftermarket parts for budget-focused businesses.

Quick Delivery of your Restaurant Parts

We know that when you need Southbend parts for your oven, broiler, or other appliance, you need them now. That’s why we take immense pride in our ability to deliver parts to you so quickly. Our customers are family to us and we strive to keep them happy and in business. If by chance your company is located in the Greater New York area, you can even come and pick up your Southbend parts at our headquarters if we have them in stock.

Get our Expertise on your Breakdown

Maybe you’re new to the restaurant business and aren’t sure of what you need. If that’s the case, we request that you go ahead and contact us. Sometimes you need the right direction to find the restaurant part you need, and we’re more than happy to provide you with the information you want.

At Parts Depot, we’re always looking forward to hearing from you. Contact us today!

Shop our eBay Store

If you need a Southbend part not listed on this page, please let us know
and we’ll get the part for you.

PART#

OEM#

DETAILS

PRICE

BUY

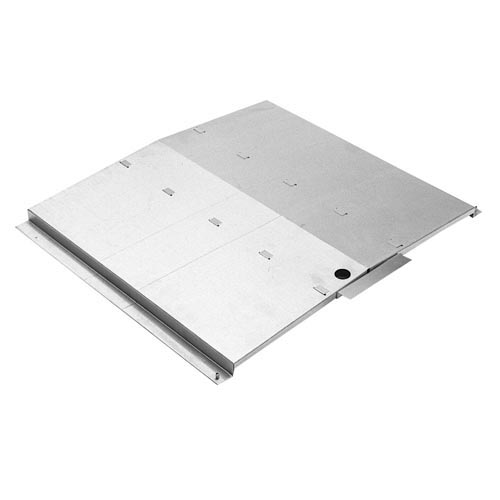

Southbend - S-100 - Fire Plate - 1167432 S-100    1167432 FIRE PLATE- 20 7/8" X 25 7/8" $230.00 BUY NOW!
Southbend -S-101 - 1062599 - Filter S-101    1062599 FILTER-10" X 20" X 1 $40.00 BUY NOW!

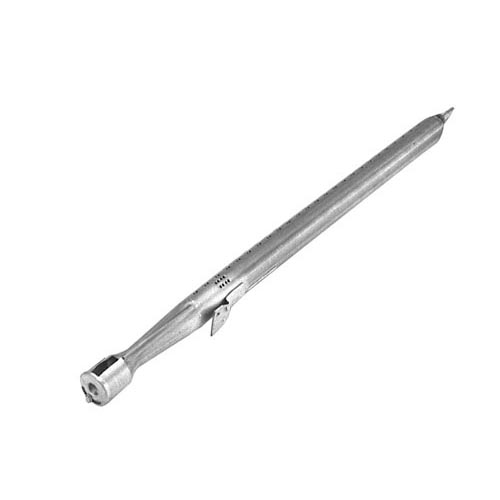

Southbend - S-102 - Oven Burner S-102    1164255 23 1/2" STEEL OVEN BURNER

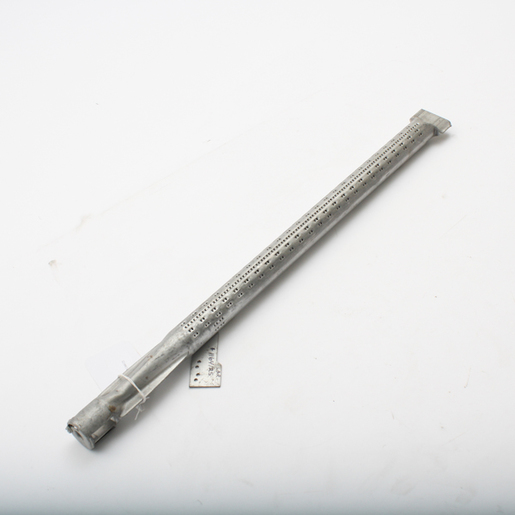

Southbend - S-103 - 1164125 - Oven Burner - S-103    1164125 20 1/4" STEEL OVEN BURNER $45.00 BUY NOW!
Southbend - S-103 - 1164125 - Oven Burner S-104    1165733 23 3/4" STEEL OVEN BURNER 1/4" PIN CTR $68.00 BUY NOW!

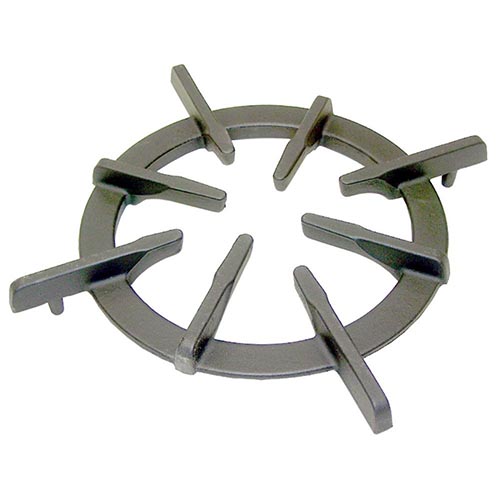

Southbend - S-106 - 1160162- Grate S-106    1160162 GRATE- 9 1/2" RING DIA. 11 1/4" PIN CTR $40.00 BUY NOW!
S-107   1163875 IR BURNER- 5 1/8" X 24 1/8" $400.00 BUY NOW!
Southbend -S-108 - 15371 - Ceramic S-108    15371 CERAMIC TILES- 3 3/4" X 4 1/4" $15.00 BUY NOW!
S-111    1046599 BLOWER WHEEL- 10" X 2 1/8" X 5/8" HOLE $75.00 BUY NOW!
S-112    2537 HINGE ASSY $15.00 BUY NOW!

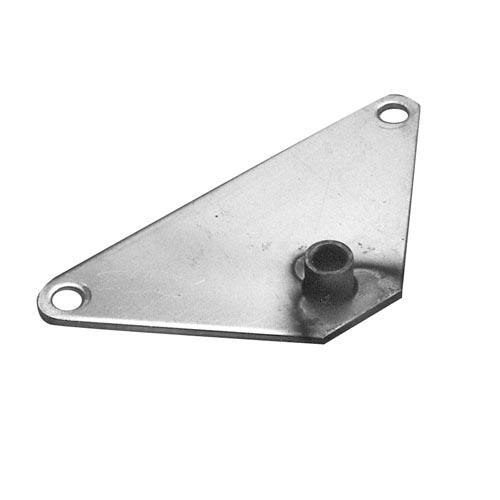

Southbend - S-113 - 1119099 - Quadrant - S-113   1119099 STEEL QUADRANT $37.00 BUY NOW!
Southbend-S-114- 1034900 - Left Spring Hook S-114    1034900 LEFT HAND SPRING HOOK $8.00 BUY NOW!
Southbend- S-115- 1034901- Right Spring Hook S-115    1034901 RIGHT HAND SPRING HOOK $8.00 BUY NOW!
Southbend - S-116 - P1089- DOOR SPRING S-116    P1089 DOOR SPRING $12.00 BUY NOW!
SOUTHBEND - S-117 - VALVE S-117    1126842 ON/OFF NAT VALVE- 300 SERIES OLD STYLE $12.00 BUY NOW!

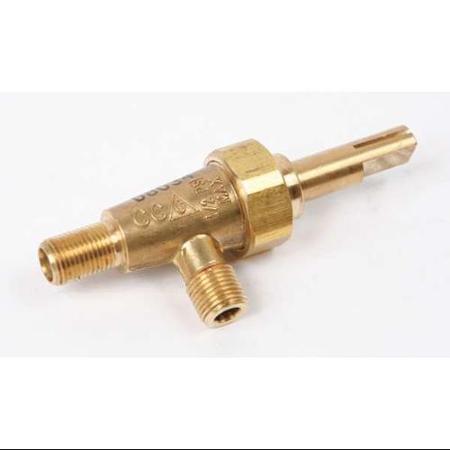

SOUTHBEND - S-119 - VALVE S-119   1126857 ON/OFF LP VALVE- 300 SERIES OLD STYLE $14.00 BUY NOW!

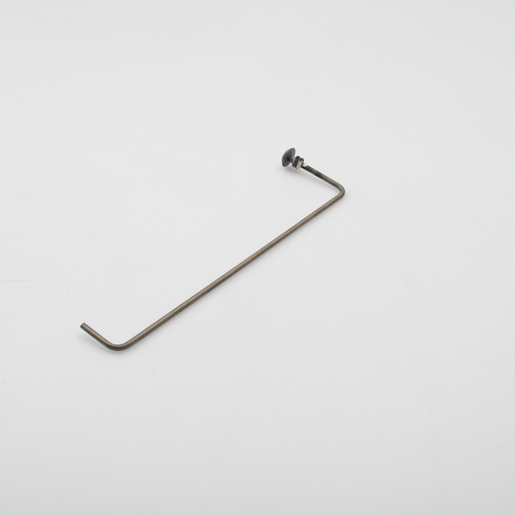

Southbend - S-120- 1166012- Front Pilot Assy S-120    1166012 FRONT PILOT ASSY- 11" X 1 1/2" X 3" AT TIP F/3/16 TUBE $40.00 BUY NOW!

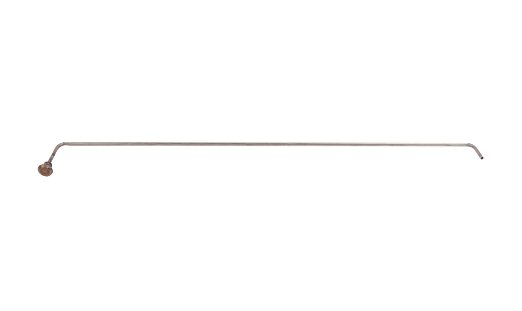

Southbend- S-121- REAR PILOT ASSY - 1166013 S-121   1166013 REAR PILOT ASSY- 23" X 1 1/2" X 3" AT TIP F/3/16 TUBE $45.00 BUY NOW!
Southbend - S-122- P3100- Flash Tube S-122    P3100 FLASH TUBE- 2 1/4" LONG $8.00 BUY NOW!
Southbend- S-123- Flash Tube- 2687 S-123   2687 FLASH TUBE- 1 3/4" LONG $4.00 BUY NOW!
Southbend - S-124 - 1-5878 - CHARGE PORT S-124    I-5878 CHARGE PORT- BRASS INSERT $8.00 BUY NOW!
SOUTHBEND- S-126- 1168289- CONVERSION KIT S-126    1168289 Conversion Kit $225.00 BUY NOW!
SOUTHBEND - S-127 - 1113999 - CONVERSION KIT S-127    1113999 Conversion Kit $160.00 BUY NOW!
SOUTHBEND - S-128 - 1162453 - SAFETY VALVE S-128   1162453 CONVERSION KIT $160.00 BUY NOW!
Southbend - S-132 - Pilot - 1168263 S-129    1164037 SAFETY PILOT VALVE-3/8" PIPE, 3/16 TUBE FOR PILOT $115.00 BUY NOW!

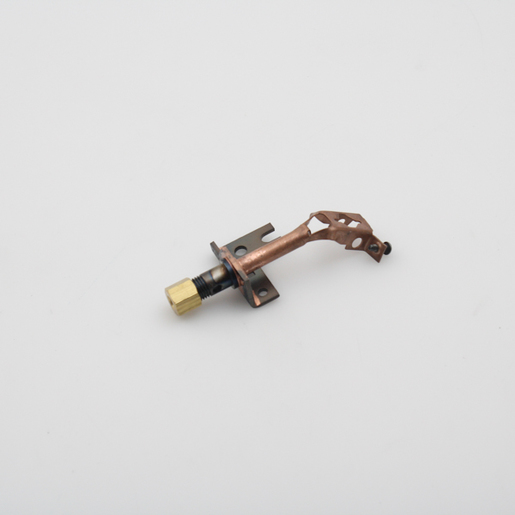

Southbend - S-132 - Pilot - 1168263 S-132    1168263 PILOT BURNER- USED W/ S-127& S-128 $25.00 BUY NOW!
S-133    1046493 PILOT BURNER- USED W/ S-127 & S-128 SAFETY $30.00 BUY NOW!
Southbend - S-134 - 1163869 - Pilot S-134    1163869/70 PILOT BURNER- USED W/ S-129 SAFETY $15.00 BUY NOW!

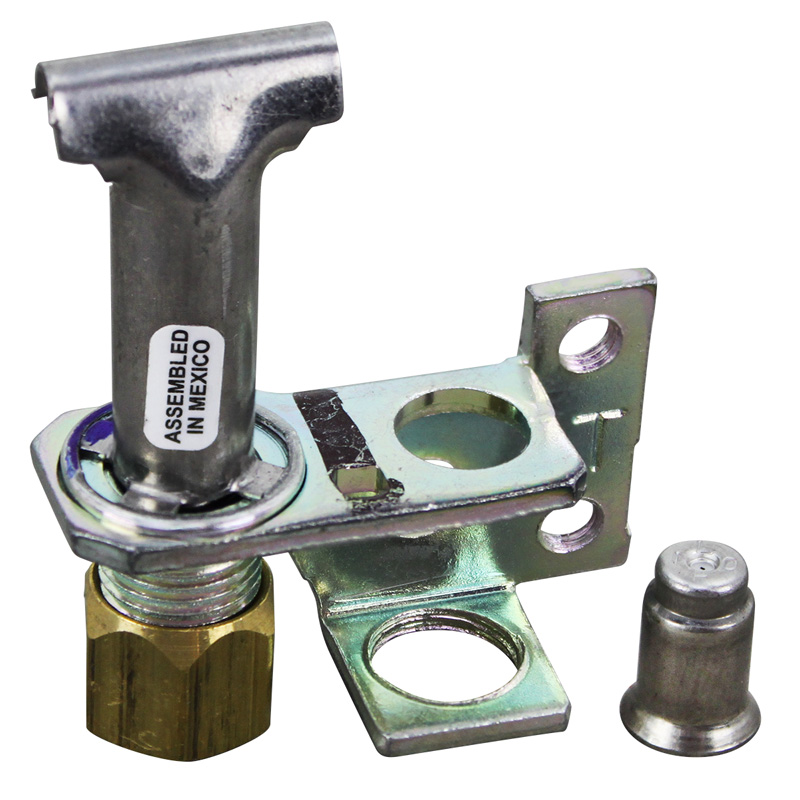

S-135    1165137 NAT PILOT ASSY FOR X,XS SERIES $35.00 BUY NOW!
S-136    1168282 FLAME SWITCH- FSS-27" CAPILLARY $130.00 BUY NOW!

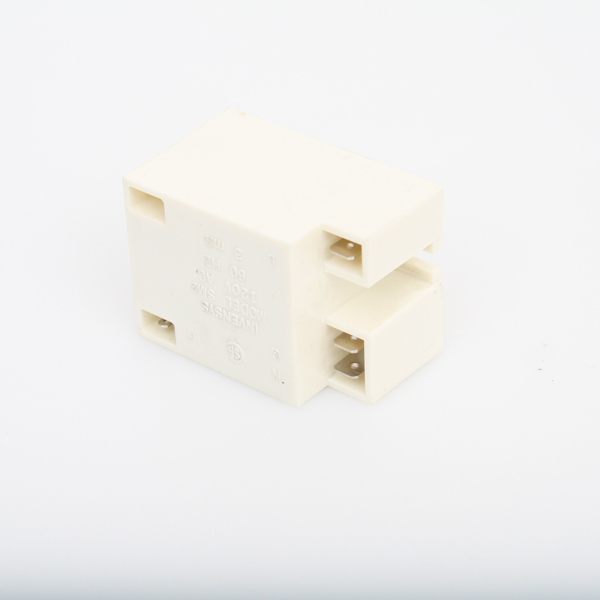

SOUTHBEND - S-138 - SPARK MODULE S-138   1164809 SPARK IGNITION MODULE - SM2-120 VOLT $40.00 BUY NOW!

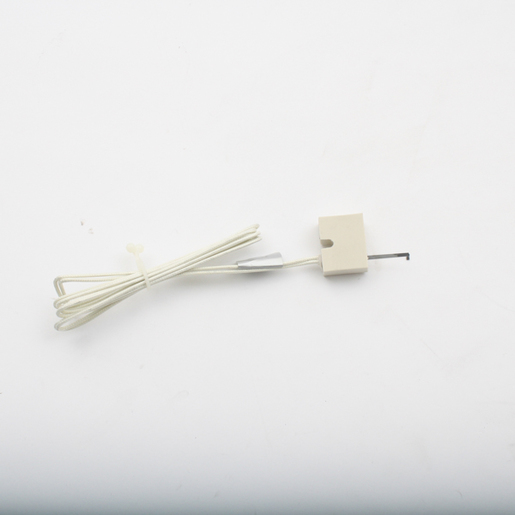

Southbend - S-139 - Glow Ignitor - 4440385 S-139    4440385 GLOW IGNITOR- 24V 36" LEADS $75.00 BUY NOW!
Southbend - S-140 - 1181996 - PROBE S-140    1181996 TEMP PROBE- 3/16" X 4" LONG $70.00 BUY NOW!

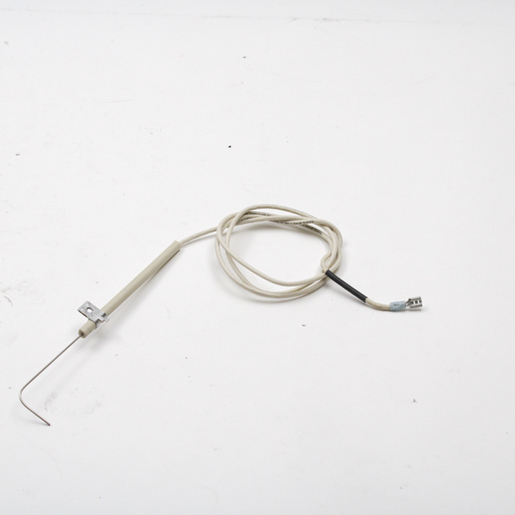

Southbend - S-141 - Flame Sensor - 1175127 S-141    1175127 FLAME SENSOR- 3" X 1 1/4" L SHAPE PROBE $65.00 BUY NOW!
Southbend - S-142 - 1181998 - Control Board S-142    1181998 CONTROL BOARD- COOK ONLY $125.00 BUY NOW!

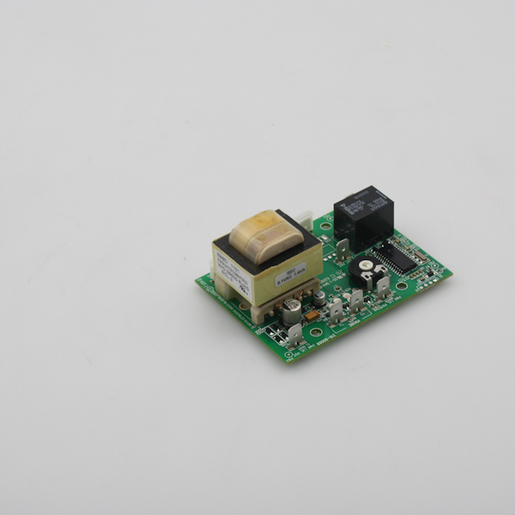

SOUTHBEND -S-143 - BOARD S-143    1172733 CONTROL BOARD - COOK ONLY $225.00 BUY NOW!

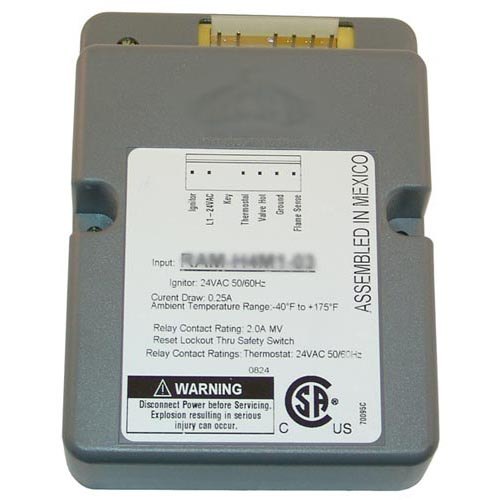

Southbend - S-144- 4440447- Ign Control S-144    4440447 IGNITION CONROL-RAM $145.00 BUY NOW!

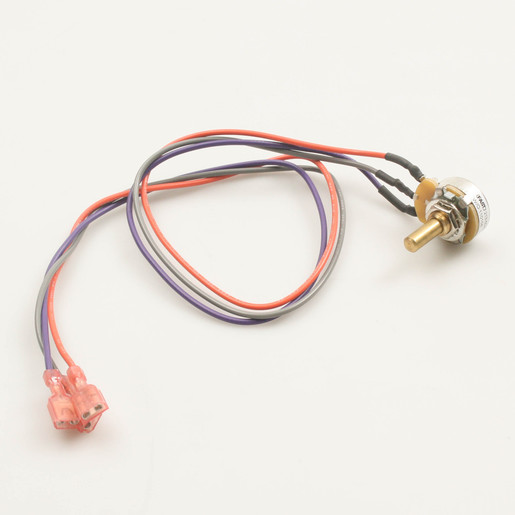

S-146   1172734 POTENTIOMETER USED W/ S-143 $124.00 BUY NOW!
Southbend - S-147- BJ TSTAT S-147    A81-00054 THERMOSTAT- 150-550 DEGREES $145.00 BUY NOW!

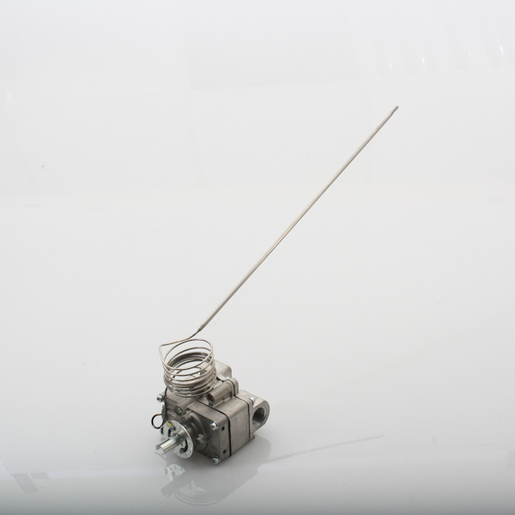

Southbend - S-148 - Tstat - 1170193 S-148    1170193 THERMOSTAT- 150-550 DEGREES (GAS) $150.00 BUY NOW!
S-149    116145-2 THERMOSTAT- 175-550 DEGREES (ELECTRIC) $125.00 BUY NOW!
S-150   1160534 KNOB-OFF/ON-2 1/2" DIA.BIG D VALVE KNOBS' $15.00 BUY NOW!

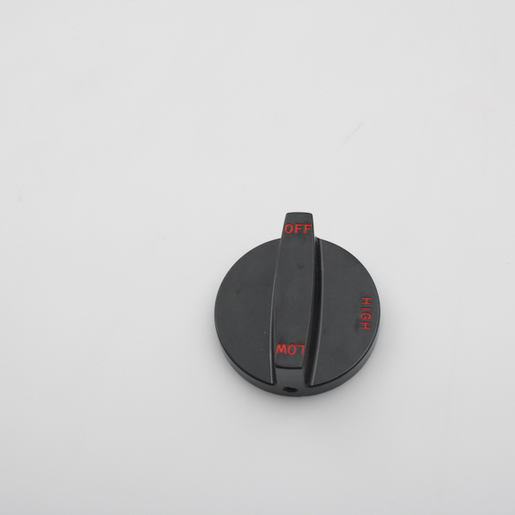

S-151   1160532 KNOB-OFF-HIGH-LOW-2 1/2" DIA. BIG D VALVE $16.00 BUY NOW!
S-152   1160533 KNOB-OFF-ON (OVEN)- 2 1/2" DIA. BIG D VALVE KNOB $16.00 BUY NOW!
S-153   4440400 GAS VALVE - NATURAL GAS $50.00 BUY NOW!
S-154  1160532 Knob $12.00 BUY NOW!
S-155   1172185 MAIN BURNER - 7" X 24" $75.00 BUY NOW!
\ S-156   1172781 TOP GRATE -5 1/2" X 21" $50.00 BUY NOW!
S-157   1172777 BOTTOM GRATE 5 1/4" X 21" $38.00 BUY NOW!
S-158    1054000 GS THERMOSTAT $100.00 BUY NOW!
S-159    1054200 LCC SAFETY THERMOSTAT $225.00 BUY NOW!
S-160   1053995 GS GAS VALVE LP $125.00 BUY NOW!
S-161    1053997 GS GAS VALVE NAT $125.00 BUY NOW!
S-162   1054300 THERMOPILE SCREW IN $30.00 BUY NOW!
S-163    1054197/96 PILOT ASSY NAT/LP $20.00 BUY NOW!
S-164   1040701 13 1/2" X 13 1/2" TUBE SCREEN $12.00 BUY NOW!
S-165    1163417 LIMIT WIRE $14.00 BUY NOW!
S-166    1183200 IGNITOR ( 3/8 X 3 ) $55.00 BUY NOW!
S-167    1180859 QUADRANT NEW STYLE $22.00 BUY NOW!
S-168    1175723 MODULE $150.00 BUY NOW!

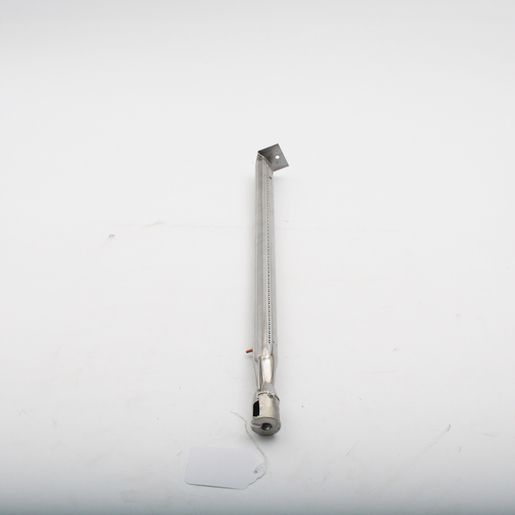

S-169    1182762 BURNER $68.00 BUY NOW!
S-170    1189311 FLAME SENSOR $40.00 BUY NOW!
S-171 1183246 IR Burner (10 x 6 5/8 x 4 3/4) $218.00 BUY NOW!
S-172 1184689 KNOB $12.00
S-173 1189600 KNOB $12.00

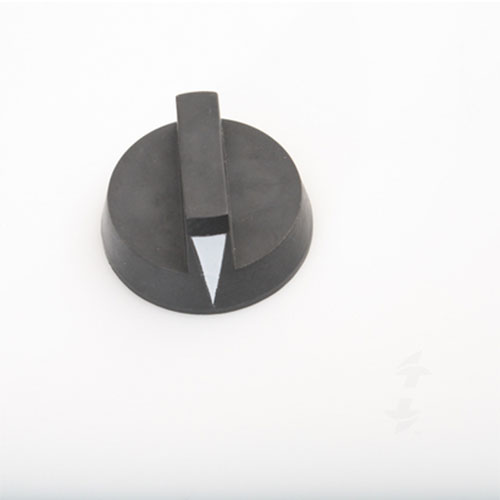

S-174 1178204 KNOB $15.00
S-175 1184192 KNOB $12.00
S-176 1183200 24V IGNITOR $60.00
S-177 1177567 LEVER SWITCH $12.00
S-178 1191727 550 DEGREE THERMOSTAT $100.00
S-179 1173542 THERMOSTAT (175-550 DEGREES) $100.00
S-180 1180866 SAFETY VALVE $140.00
S-181 1185533 DUAL SOLENOID VALVE 120V $195.00
S-182 1175263 ELEMENT 208V - 3600W $545.00
S-183 194780 2SP MOTOR - 115V $430.00

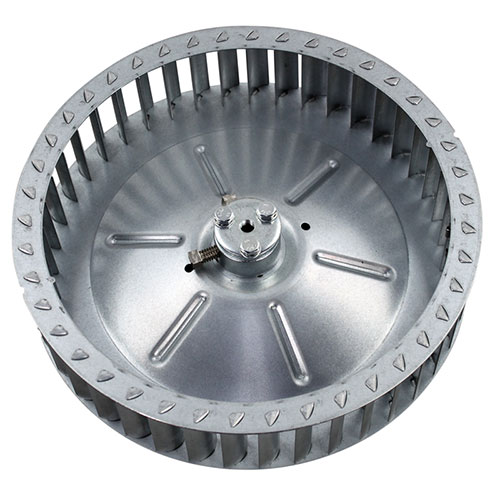

S-184 175196 BLOWER WHEEL $140.00
